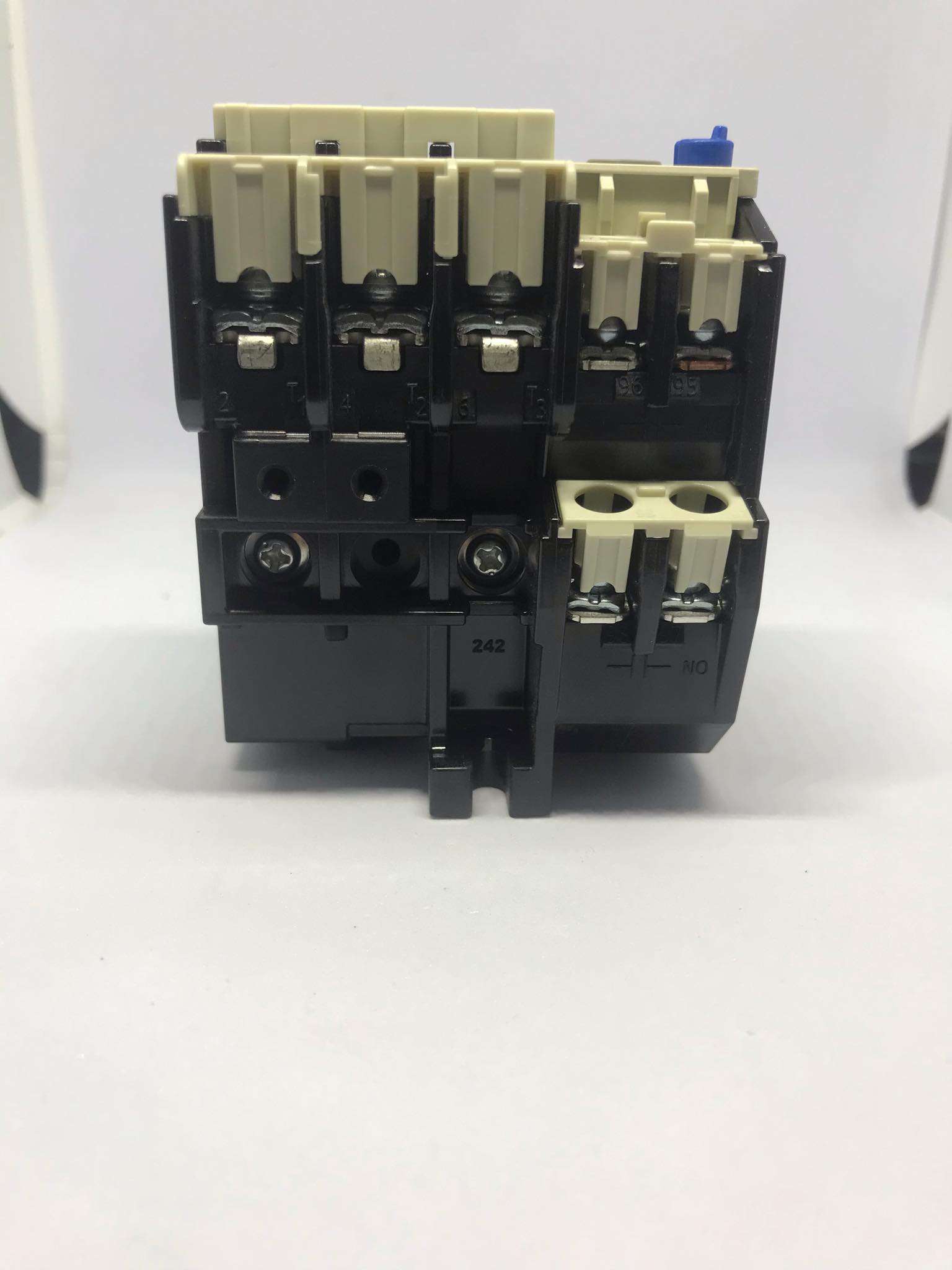

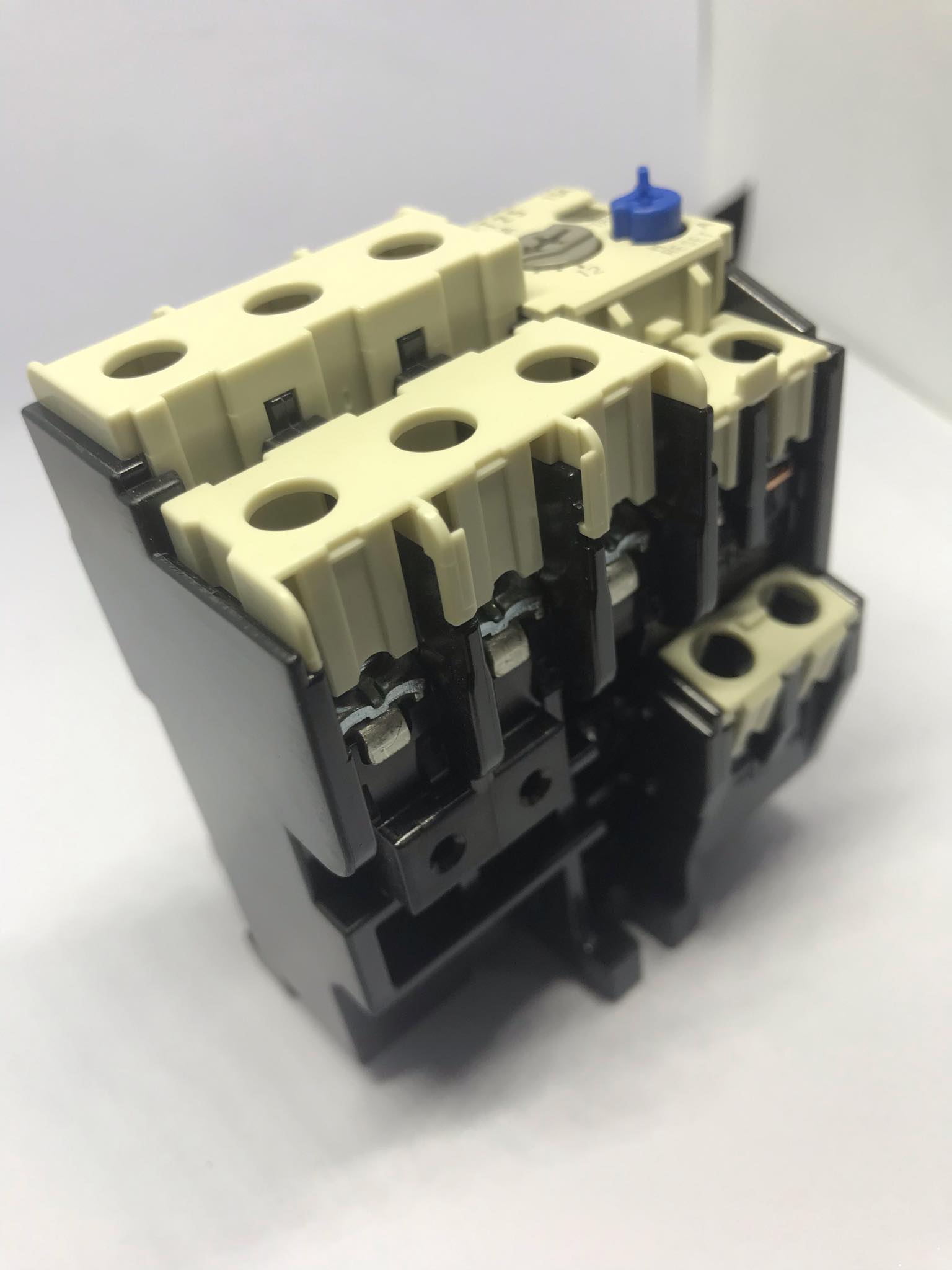

Mitsubishi Thermal Overload Relay TH-T Series

Description

TH-T Type Thermal Overload relays

Model:		T18		T25, T50
Contact:		Break Contact	Make Contact	Break Contact	Make Contact
Conventional Free Air Thermal Current [A]		2	2	5	5
Class AC-15 Rated Operating Current [A]	AC24V	2 (0.5)	2 (0.5)	3 (0.5)	2 (0.5)
	AC120V	2 (0.5)	2 (0.5)	3 (0.5)	2 (0.5)
	AC240V	1 (0.5)	1 (0.5)	2 (0.5)	1 (0.5)
	AC550V	0.3 (0.3)	0.3 (0.3)	0.3 (0.3)	0.3 (0.3)
Class DC-13 Rated Current [A]	DC24V	0.5 (0.3)	0.5 (0.3)	1 (0.3)	1 (0.3)
	DC110V	0.2 (0.2)	0.2 (0.2)	0.2 (0.2)	0.2 (0.2)
	DC220V	0.1 (0.1)	0.1 (0.1)	0.1 (0.1)	0.1 (0.1)
