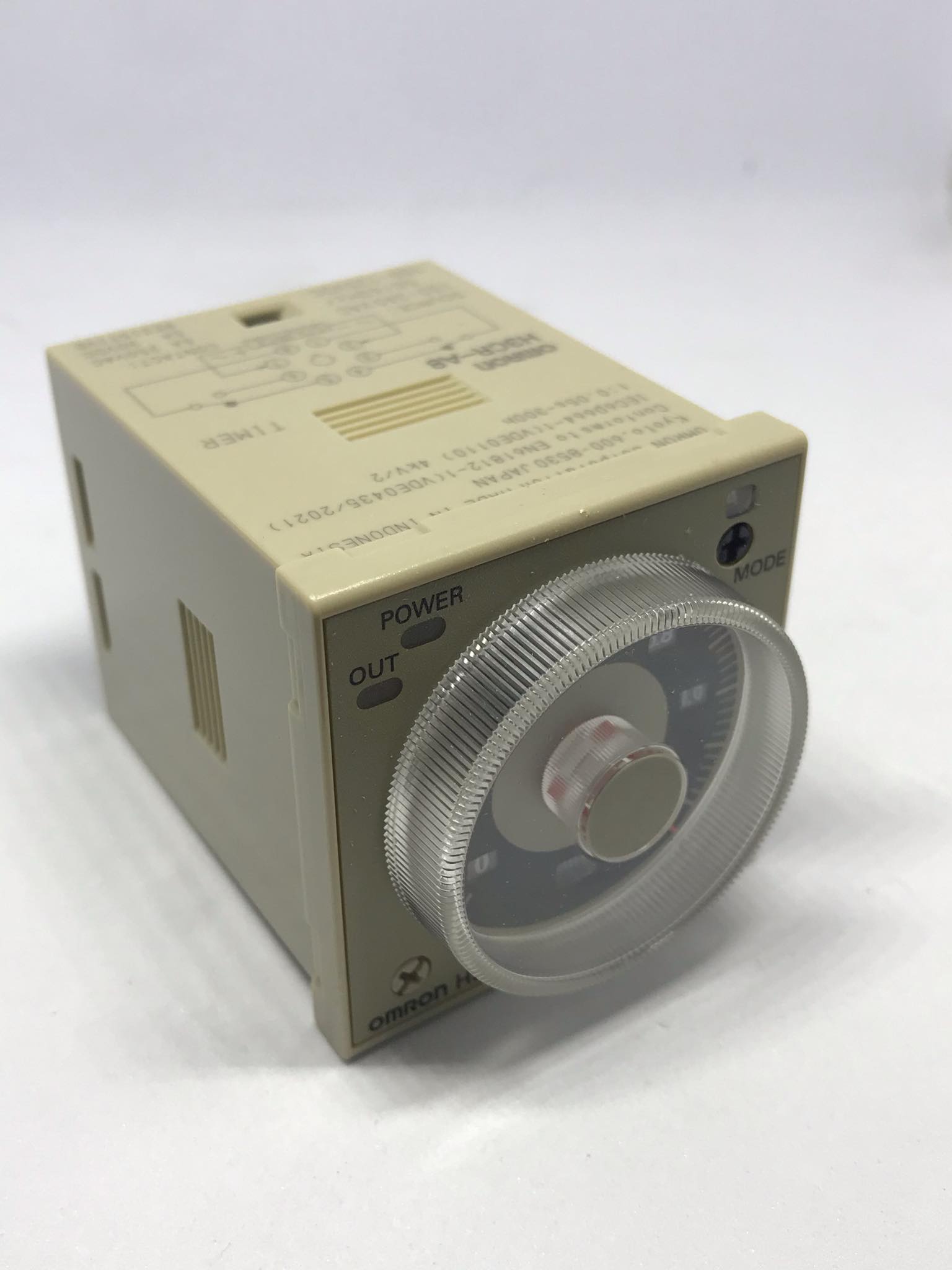

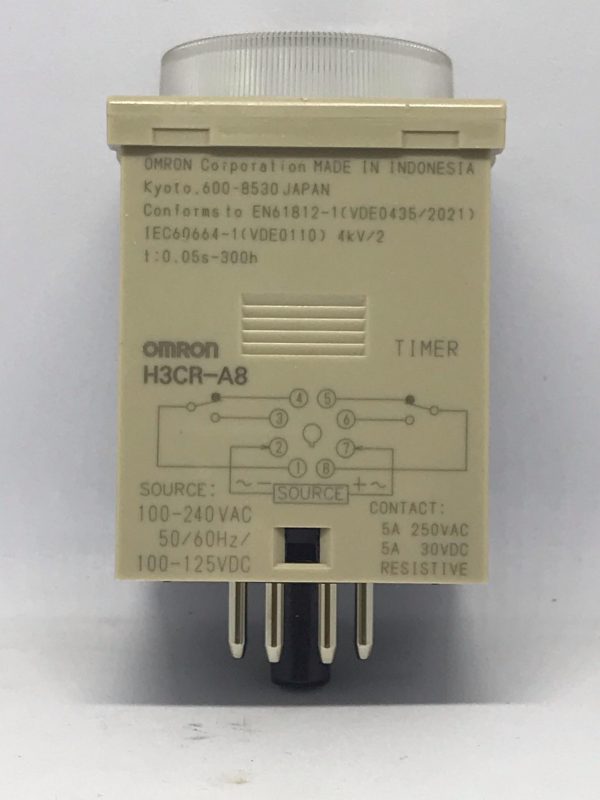

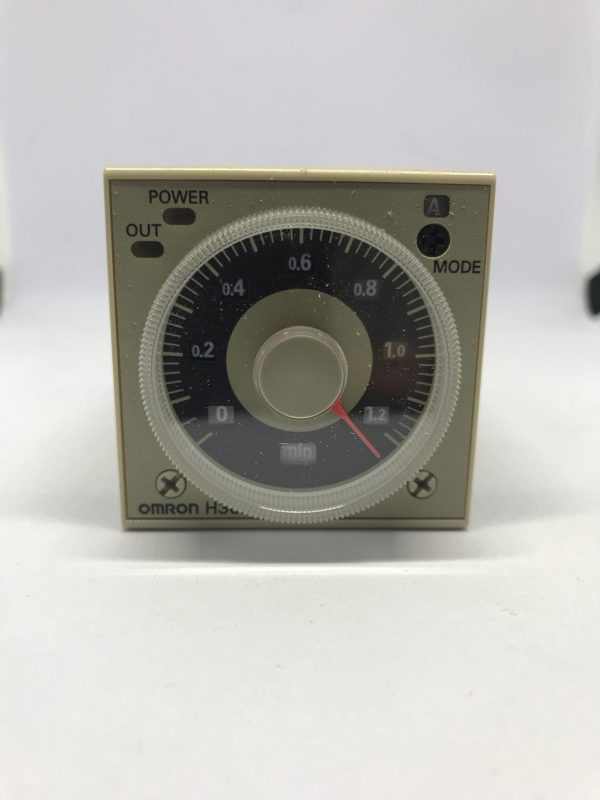

Omron Timer H3CR Series
Description
| Item: | H3CR-A/AS/A-301 | H3CR-AP | H3CR-A8/A8S/A8-301 | H3CR-A8E |
| Operation: | A: ON-delay
B: Flicker OFF start B2: Flicker ON start C: Signal ON/OFF-delay D: Signal OFF-delay E: Interval G: Signal ON/OFF-delay J: One-shot |
A: ON-delay (power supply start)
B: Flicker OFF start (power supply start) B2: Flicker ON start (power supply start) E: Interval (power supply start) J: One-shot (power supply start) |
||
| Pin-Type: | 11-pin | 8 – pin | ||
| Rated operating voltage Ue
Rated operating current Ie |
Contact Output:
AC-15: Ue: 250 VAC, Ie: 3 A AC-13: Ue: 250 VAC, Ie: 5 A DC-13: Ue: 30 VDC, Ie: 0.5 A Transistor Output: DC-13: Ue: 30 VDC, Ie : 0.1 A |
|||
| Rated Insulation voltage: | 250 V | |||
| Rated impulse withstand voltage: | 4 kV (at 240 VAC) | |||
| Conditional short-circuit current: | 1000 A | |||
